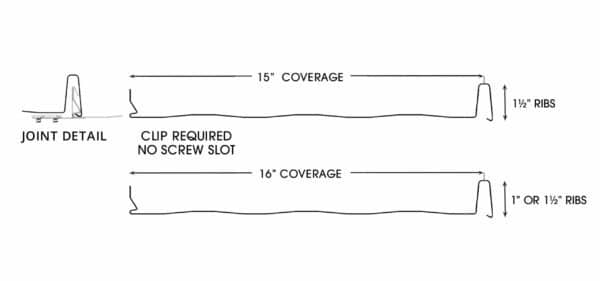

• DESCRIPTION: Our Prime Clip Lock (PCL) Standing Seam Panels are our innovative take on the standard standing seam panel. The PCL is a concealed fastener roofing system, with a clip fastener. The PCL provides 16” coverage with a 1 ½” rib. Available in our standard 26 gauge, the PCL standing seam panels are low-maintenance, impact-resistant panels, and are offered in a variety of color options including Kynar, making it an excellent choice for your next project. The PCL standing seam panels require clips to snap the panels together and require no field seaming to install.
• APPLICATION: Roofs
• COVERAGE WIDTHS: 16”
• RIB SPACING: 6”
• RIB HEIGHT: 1 ½”
• GAUGES: 24 or 26 (standard)
• LENGTH: Custom trim capabilities up to 32’ (may vary based on store)
• RATINGS: Impact Resistant – UL Class 4 Rating (UL Confirmation Letter), Fire Resistant – UL Class C Rating (UL Confirmation Letter)
• Standard comes with striations to prevent oil canning.
• Standing seam profiles may present oil canning. Oil canning is a characteristic of light gauge panels and is not a flaw and therefore not a cause for rejection by purchaser or end user.
• WARRANTIES: 40 Year Sherwin Williams Coil Coatings Warranty on Painted Panels, 25 Year Warranty on Acrylic Coated Galvalume

Our Color Chart
